Funkwerk Avionics GmbH is the German manufacturer of advanced-design
compact aircraft radios and transponders and other avionics.

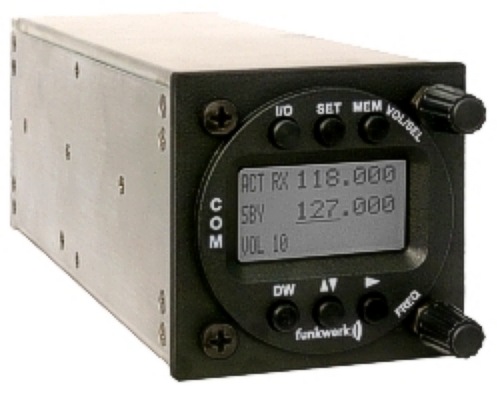

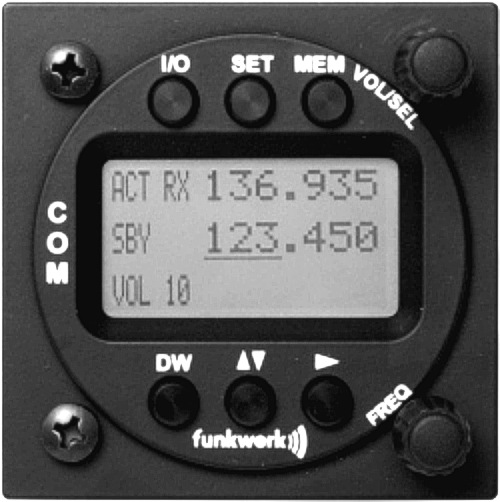

  Funkwerk ATR833-LCD radio-intercom


The ATR833-LCD is a complete solution for radios in small aircraft with the new channel separation of 8.33kHz. The channel spacing can be switched between 25kHz and 8.33kHz. The built-in VOX-controlled intercom operates up to 4 microphones and all headsets are separately adjustable. The user can define up to 100 named frequencies to build up an own database. All stored frequencies can be searched via name. The ATR833-LCD transceiver fits in a standard 2.25" instrument panel hole and is 6.3" long (without connectors -- allow 2" for connectors and cables).



Features:
    � 760 channel VHF transceiver
    � compact - fits in 2.25" round hole in instrument panel
    � dual-watch technology, simultaneous monitoring of two frequencies
    � fast alphanumeric database search
    � built-in VOX intercom for up to 4 microphones
    � memory for up to 100 user-definable named frequencies
    � full 6W carrier output
    � auto TX cut-out after 2 minutes
    � German quality -- full two-year warranty

Technical Data:
    � frequency range: 118.00MHz - 136.975MHz
    � 8.33kHz/25kHz channel spacing
    � HF output power approx 6W
    � audio output power approx 4W
    � weight: approx 1 lb 9 oz
    � power consumption: approx 120mA standby; 1.8A during transmission
    � power supply: 10.5V � 14V
    � supplied with connector; optional pre-wired harness available


    ATR833-LCD list price... $1645.00
  special price... $1495.00
    BSKS833T wiring harness
  with prewired headset sockets
  (does not include PTT switches)... $250.00

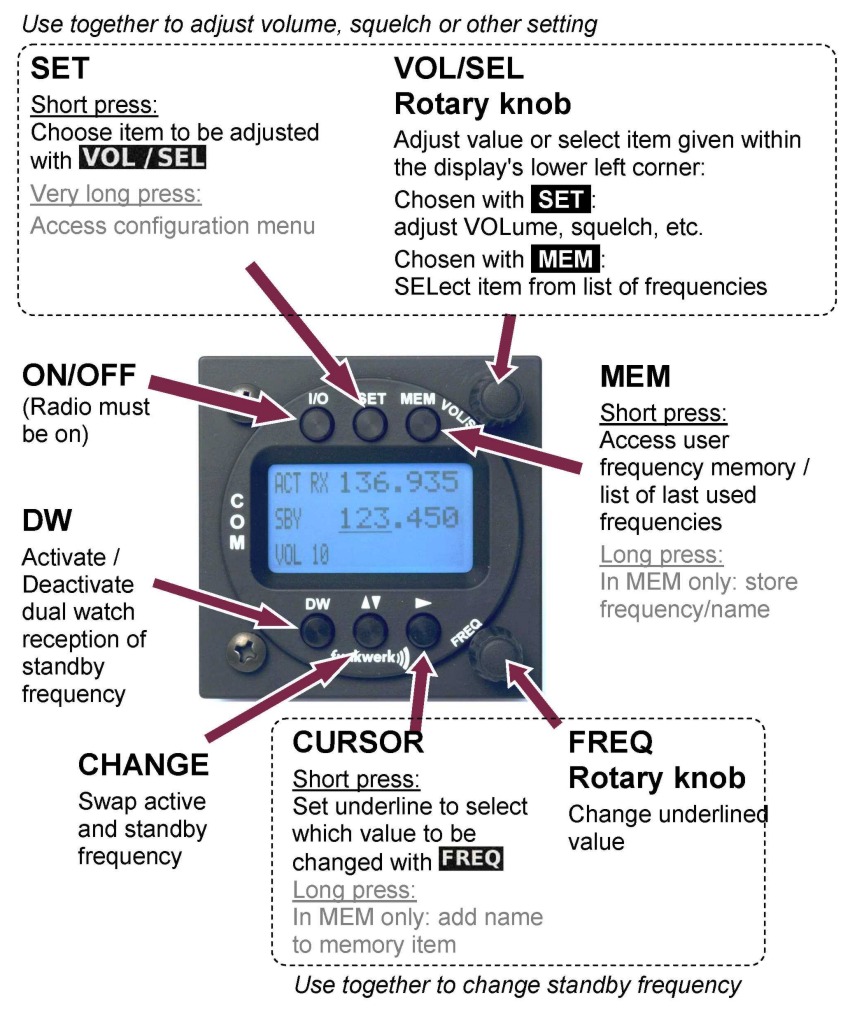

    ATR833-LCD controls/functions diagram... atr833-lcd-controls.jpg
  ATR833-LCD brochure... atr833-lcd-flyer.pdf
  ATR833-LCD operation & installation manual... atr833-lcd-manual.pdf
  dealer and aircraft manufacturer inquiries invited





also available for ATR833-LCD...
ATR833RT-LCD Remote Control Unit... $595.00
ATR833RT-LCD manual... atr833rt-lcd-manual.pdf

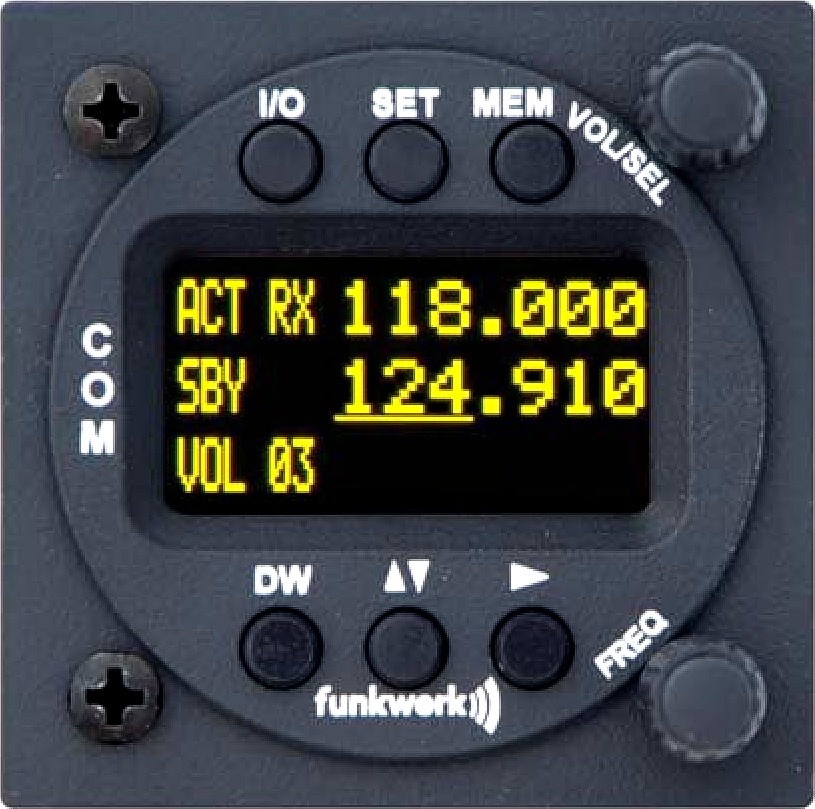

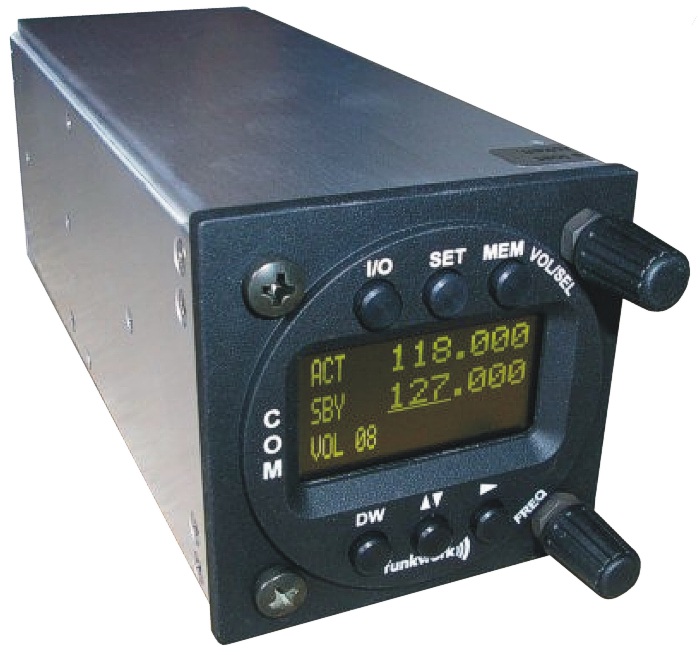

  Funkwerk ATR833-OLED radio-intercom


The ATR833-OLED is a complete solution for radios in small aircraft with the new channel separation of 8.33kHz. The channel spacing can be switched between 25kHz and 8.33kHz. The built-in VOX-controlled intercom operates up to 4 microphones and all headsets are separately adjustable. The user can define up to 100 named frequencies to build up an own database. All stored frequencies can be searched via name. The OLED-display gives perfect readability under all lighting conditions. The ATR833-OLED transceiver fits in a standard 2.25" instrument panel hole and is 6.3" long (without connectors -- allow 2" for connectors and cables).



Features:
    � 760 channel VHF transceiver
    � compact - fits in 2.25" round hole in instrument panel
    � OLED display for best readability under all conditions
    � dual-watch technology, simultaneous monitoring of two frequencies
    � fast alphanumeric database search
    � built-in VOX intercom for up to 4 microphones
    � memory for up to 100 user-definable named frequencies
    � full 6W carrier output
    � auto TX cut-out after 2 minutes
    � German quality -- full two-year warranty

Technical Data:
    � frequency range: 118.00MHz - 136.975MHz
    � 8.33kHz/25kHz channel spacing
    � HF output power approx 6W
    � audio output power approx 4W
    � weight: approx 1 lb 9 oz
    � power consumption: approx 150mA standby; 1.8A during transmission
    � power supply: 10.5V � 14V
    � supplied with connector; optional pre-wired harness available


    ATR833-OLED list price... $1795.00
  special price... $1649.00

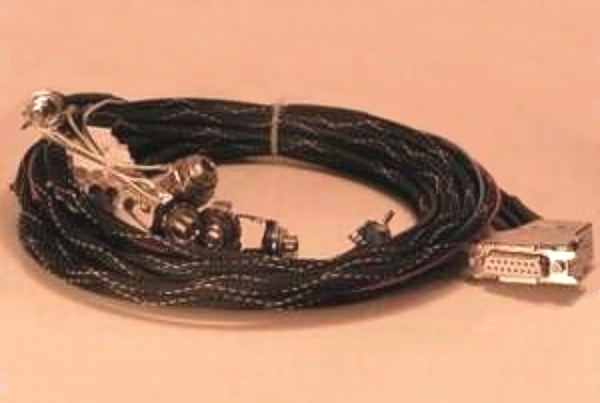

    BSKS833T wiring harness
  with prewired headset sockets
  (does not include PTT switches)... $250.00

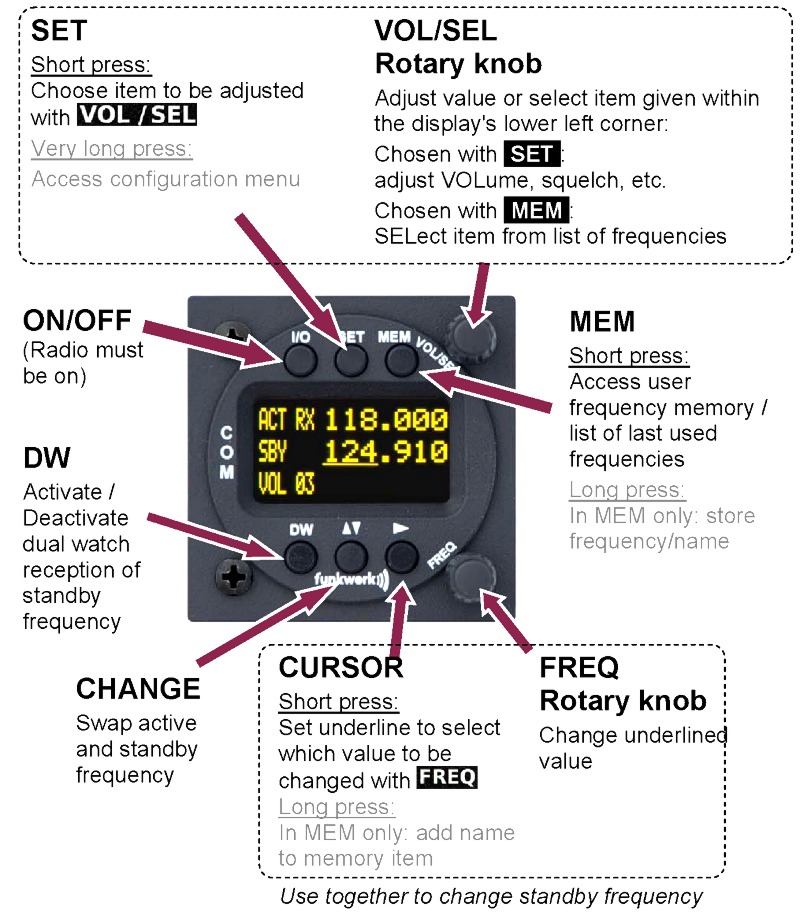

    ATR833-OLED controls/functions diagram... atr833-controls.jpg
  ATR833-OLED brochure... atr833-flyer.pdf
  ATR833-OLED operation & installation manual... atr833-oled-manual.pdf
  dealer and aircraft manufacturer inquiries invited





also available for ATR833-OLED...
ATR833RT-OLED Remote Control Unit... $645.00
ATR833RT-OLED manual... atr833rt-oled-manual.pdf

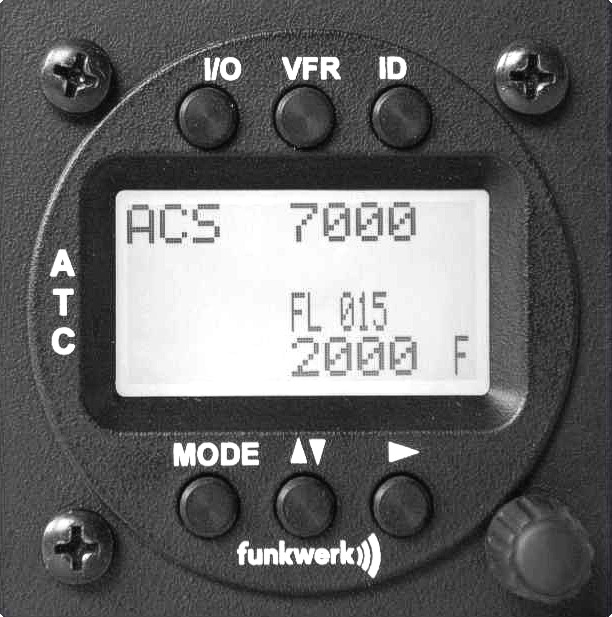

  Funkwerk TRT800H-LCD Mode-S transponder-encoder




The TRT800H-LCD is a 250 watt Mode-S transponder-encoder for all aviation applications from ultralight aircraft to gliders, light sport aircraft, experimental aircraft, and General Aviation aircraft. It offers classical A/C modes of operation plus full Mode-S support.

The TRT800H-LCD advantages are small dimensions and a built-in altitude encoder. The wiring harness is included which helps make installation extremely simple and easy. These features also reduce installation cost and weight. The TRT800H-LCD may be used up to 35,000 ft actual operating altitude and a maximum true airspeed 250 knots.

The TRT800H-LCD has an LCD display -- and makes an excellent companion to our ATR833-LCD radio.



Features:
    � 250 watt, full featured, EASA certified Class 1 transponder
    � 4-line OLED display show active and stand-by code
    � FAA certified for VFR and IFR operation
    � operating modes: Mode A/C, Mode-S
    � integrated altitude encoder up to 35,000 ft
    � fits in standard 2.25" round instrument panel hole
    � easy operation
    � German quality -- full two-year warranty

Technical Data:
    � dimensions: 2.25" x 2.25" x 6.3"
    � weight: 1 lb 4 oz
    � power supply voltage: 13.75v DC
    � typical current draw: <300mA
    � transmitter power at antenna connector: 250w
    � compliance: EUROCAE ED-73B, CS-ETSO-2C112a Class 1
    � supplied with wiring harness and TNC connector

    TRT800H-LCD list price...$2475.00
      special price... $2095.00

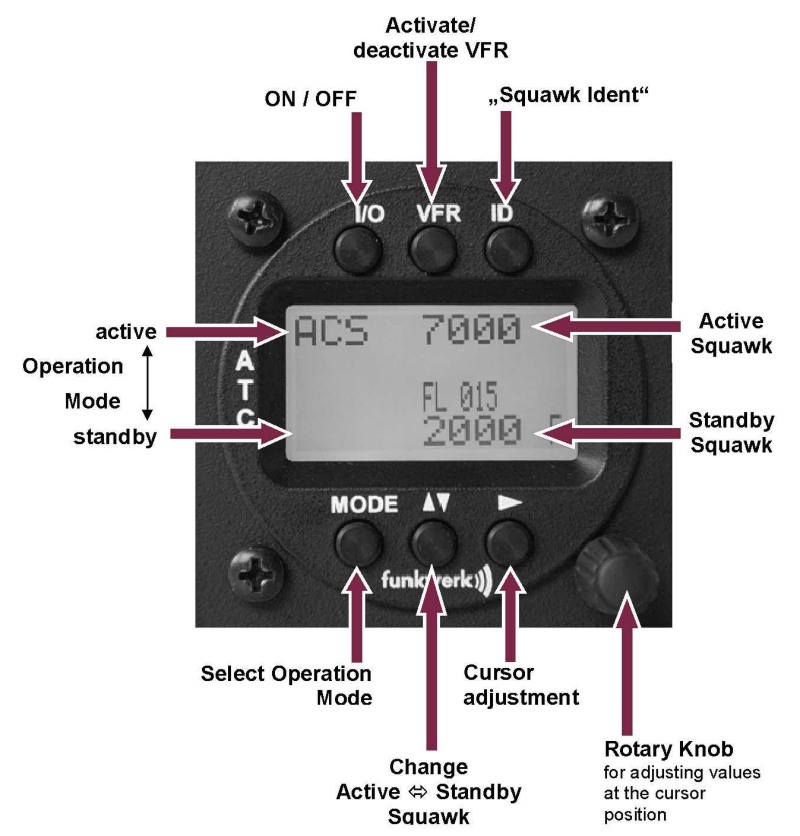

    TRT800H-LCD controls/functions diagram... trt800h-lcd-controls.jpg
  TRT800H-LCD brochure... trt800h-lcd-flyer.pdf
  TRT800H-LCD operation & installation manual... trt800h-lcd-manual.pdf

    dealer and aircraft manufacturer inquiries invited




also available for TRT800H-LCD...
TRT800RT-OLED Remote Control Unit... $595.00
TRT800RT-LCD manual... trt800rt-lcd-manual.pdf

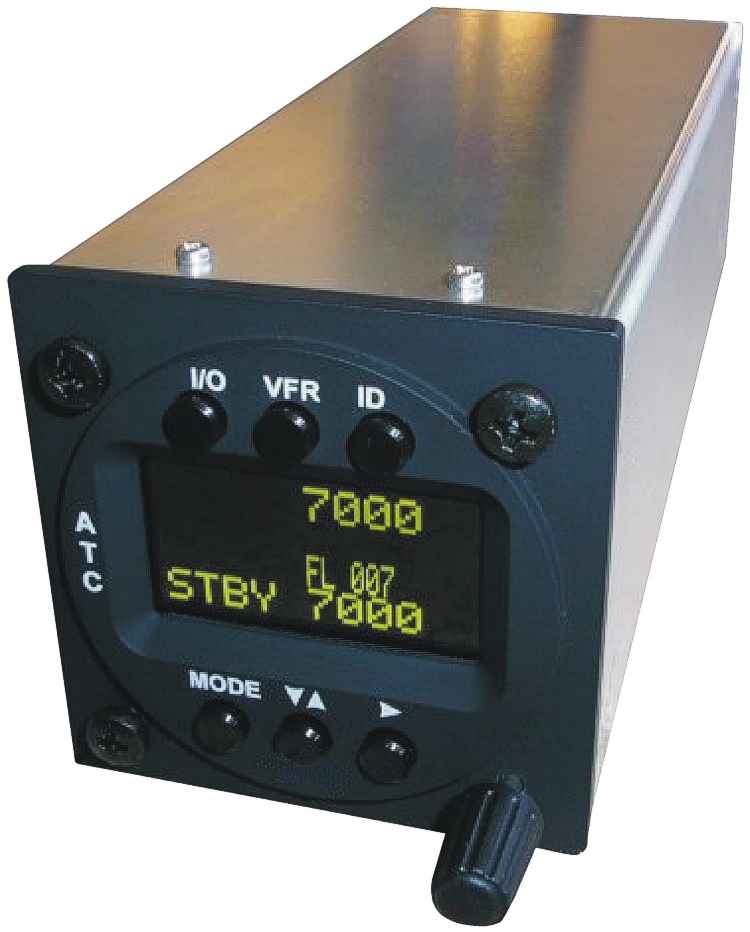

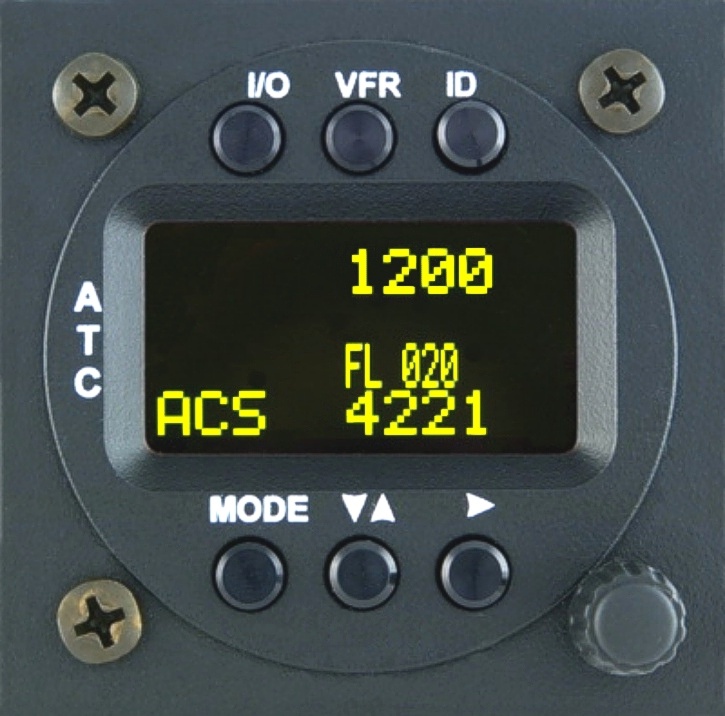

  Funkwerk TRT800H-OLED Mode-S transponder-encoder


The TRT800H-OLED is a 250 watt Mode-S transponder-encoder for all aviation applications from ultralight aircraft to gliders, light sport aircraft, experimental aircraft, and General Aviation aircraft. It offers classical A/C modes of operation plus full Mode-S support.

The TRT800H-OLED advantages are small dimensions and a built-in altitude encoder. The wiring harness is included which helps make installation extremely simple and easy. These features also reduce installation cost and weight. The TRT800H-OLED may be used up to 35,000 ft actual operating altitude and a maximum true airspeed 250 knots.

The TRT800H-OLED has a high-tech, easy-visibility OLED display -- and makes an excellent companion to our ATR833-OLED radio.



Features:
    � 250 watt, full featured, EASA certified Class 1 transponder
    � 4-line OLED display show active and stand-by code
    � FAA certified for VFR and IFR operation
    � operating modes: Mode A/C, Mode-S
    � integrated altitude encoder up to 35,000 ft
    � fits in standard 2.25" round instrument panel hole
    � easy operation
    � German quality -- full two-year warranty

Technical Data:
    � dimensions: 2.25" x 2.25" x 6.3"
    � weight: 1 lb 4 oz
    � power supply voltage: 13.75v DC
    � typical current draw: <300mA
    � transmitter power at antenna connector: 250w
    � compliance: EUROCAE ED-73B, CS-ETSO-2C112a Class 1
    � supplied with wiring harness and TNC connector


    TRT800H-OLED list price...$2620.00
      special price... $2295.00

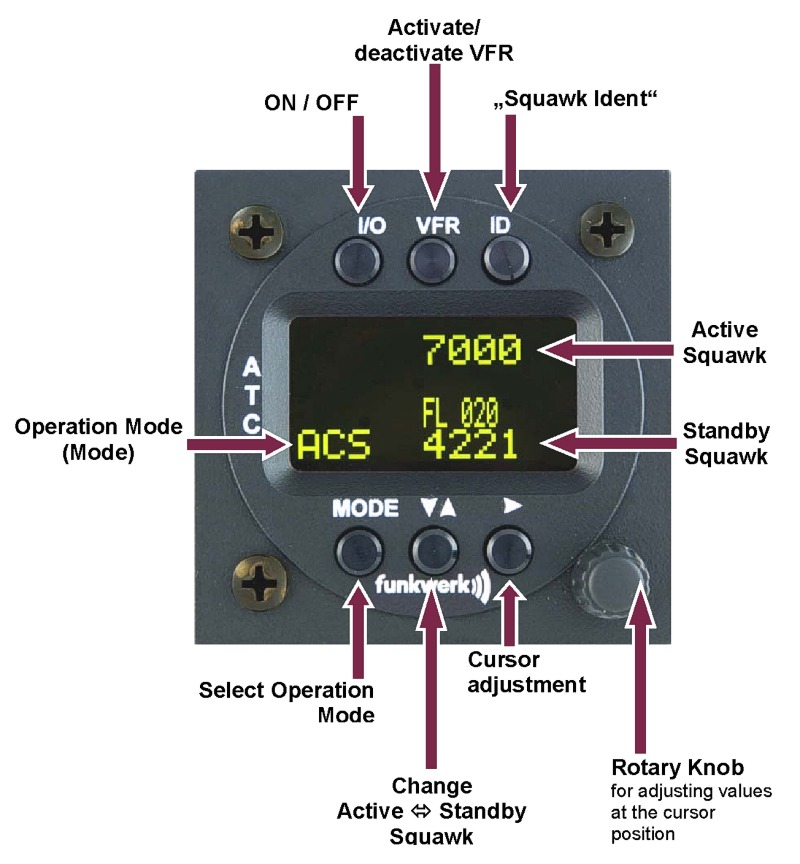

    TRT800H-OLED controls/functions diagram... trt800h-controls.jpg
  TRT800H-OLED brochure... trt800h-flyer.pdf
  TRT800H-OLED operation & installation manual... trt800h-manual.pdf

    dealer and aircraft manufacturer inquiries invited




also available for TRT800H-OLED...
TRT800RT-OLED Remote Control Unit... $645.00
TRT800RT-OLED manual... trt800rt-manual.pdf



Funkwerk Avionics GmbH is part of the German Funkwerk Group which develops and produces professional communication systems used in various areas of transportation. Further information can be found at www.funkwerk-avionics.com. Funkwerk Avionics GmbH is an EASA approved production and maintenance organization (EASA Part 21G/Part 145). It develops, produces and sells avionics equipment and avionics system solutions in the areas of communication, navigation and displays as well as offering the TRT Mode-S transponders and ATR-series VHF radios for general aviation.

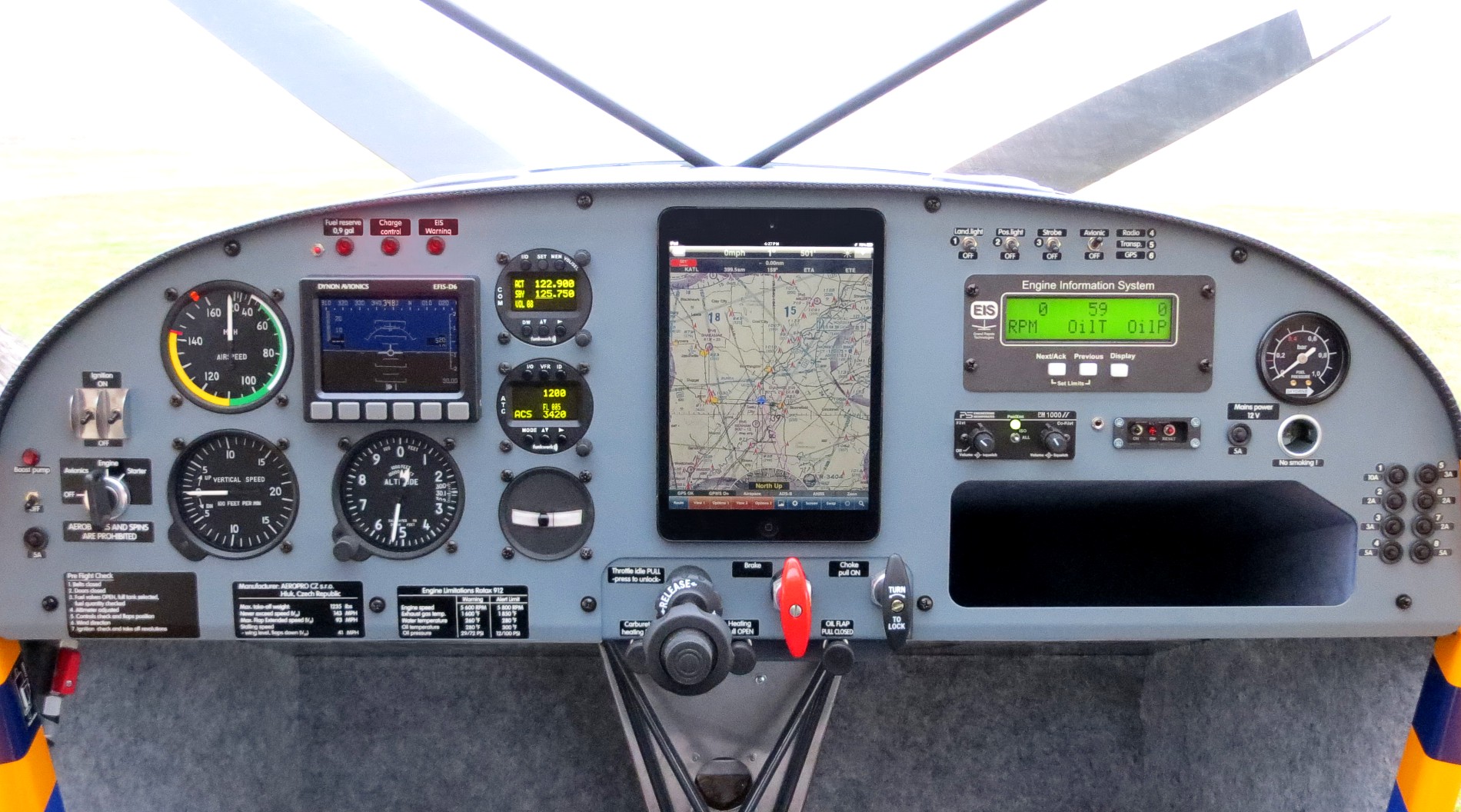

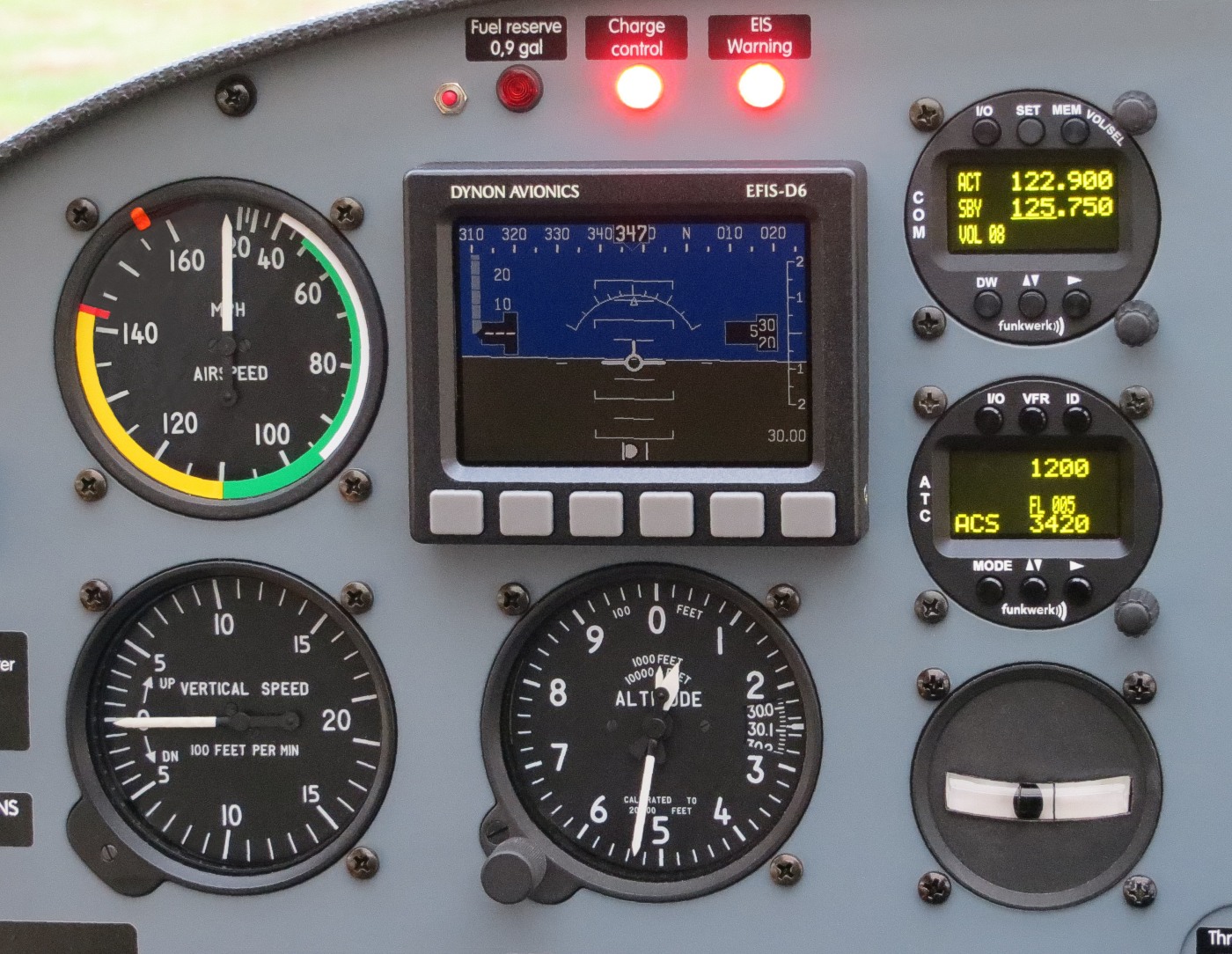

      In our Aerotrek light-sport aircraft we use the ATR833-OLED radio and the TRT800H-OLED transponder-encoder. In our experience, this is the very best equipment for our aircraft. The Funkwerk Avionics radio and transponder OLED displays have a high-tech look and provide great visibility in all lighting conditions.

      The ATR833-OLED radio has the "dual watch" feature (so the standby frequency can also be monitored) which is very useful and improves safety in many situations.



      The TRT800H-OLED is a high-performance (250w) transponder with digital flip-flop control -- the pilot adjusts the standby squawk code and then pushes a button to switch the standby code to be the active code. This is much better than transponders that require you to adjust the active squawk code.

      Of course, one of the biggest advantages of the 2.25" round radio and transponders is they use a minimum amount of panel space and they are installed without having to install a radio or transponder "tray." The TRT800H-OLED transponder has a built-in altitude encoder and is all self-contained -- which makes installation the easiest and quickest-possible.

      For ADS-B in our Aerotrek and many other aircraft, we use the TRT800H transponder with the uAvionix EchoUAT/SkyFYX-EXT ADS-B In/Out system. This provides the 2020-compliant ADS-B "Out" and provides an excellent dual-channel ADS-B receiver. The EchoUAT unit has built-in wifi that outputs the ADS-B aircraft traffic and freebie FAA weather to your iPad, iPhone, or other devices that will display this information.

      The ATR833-OLED/TRT800H-OLED radio/transponder combination is top-quality German-manufactured equipment that is overall the best as well as the best-looking choice for our aircraft instrument panels.
