XCOM aircraft radio

The XCOM 760 VHF Transceiver offers many advanced features, and is now manufactured in the U.S. by Narco Avionics! This provides for good service and warranty coverage from a fine U.S. avionics manufacturer.

Designed from the ground up, the XCOM offers superior performance under the demanding and noisy conditions experienced in many amateur built aircraft. With low power consumption, this radio is ideally suited to use in light sport aircraft, gliders, experimental aircraft and ultralights. A full 6-Watt carrier and +20 Watt PEP output ensure that you will be heard above the general chatter in busy airspace and the full VOX intercom with music input will enhance your enjoyment of the flight. With expanded receive range up to 163 MHz, the XCOM 760 provides NOAA Weather reception and has an optional CAP capability, ensuring that you are always aware of impending weather conditions.

Additional safety enhancements such as dual watch allows the pilot to listen to the standby frequency while still monitoring the primary frequency. The XCOM 760 also has 99 memory channels, large volume and channel selector knobs and well spaced buttons. This radio is extremely easy to operate even when wearing flight gloves and you can even check the condition of your battery with the built in voltage monitor.

Software update capability and Internet downloads mean that you are always provided with the latest features. The XCOM 760 offers superior quality, enhanced features and improved performance over many of the more expensive airband radios, without the high cost found in other brands.

Features, value for money and performance have quickly established the XCOM 760 as the standard radio for light sport aircraft use.

Key features of the XCOM VHF 760 transceiver . . .

• Worlds Smallest & Lightest VHF Com radio, with large backlit LCD display
• Excellent radio performance with 6 Watt Carrier Output, 20 Watt PEP Output
• Large Buttons - Easy Operation
• Built-In VOX (voice-activated) Intercom with pilot override and passenger isolate (pax can listen to music while pilot listens to comm).
• Digital radio and VOX intercom volume and squelch controls are on the front panel (same Volume/Squelch controls, but activated by mode button when required).
• Music/audio input -- music has auto fade, turns off if comm is receiving or reduces in volume if pilot or pax talk.
• 99 Memory Channels -- 99 channels of user-defined memory channels with quasi-alpha numeric display.
• Remote toggle (toggle active or standby via a push button on the stick, or scroll memory channels)
• TX timeout (stuck Mike) which times-out after 30 seconds, re-enable by releasing PTT. (can be overridden in setup)
• Dual Watch Monitor active & standby channels -- allows monitoring of the active and standby frequency, active has priority.
• Extended Receive Range
• NOAA Weather Channels USA -- 10 NOAA weather channels (suitable for USA only)
• 121.5 Emergency Channel Priority -- quick, single-push access to 121.50 Emergency Channel
• User-enabled wide receive mode -- allows monitoring of frequencies between 137 and 163 MHz, in 12.5 kHz steps. These can be stored in the memory channels. Additionally 108 - 118 VOR frequencies (no navigational data - receive only)
• RS 232 interface, allows upgrading of firmware by internet or CD-ROM. Allows interfacing of radio to Multifunction displays (MFD's) or remote computer.
• Low-battery alert, user selects level to alert for under-voltage (default is 10.5 Vdc)
• High-battery alert, user selects level to alert for over-voltage (default is 15 Vdc)
• on year warranty

Pricing . . .

U.S.-mfg. XCOM radio:   list price...$1285.00  --  click for our special XCOM price!

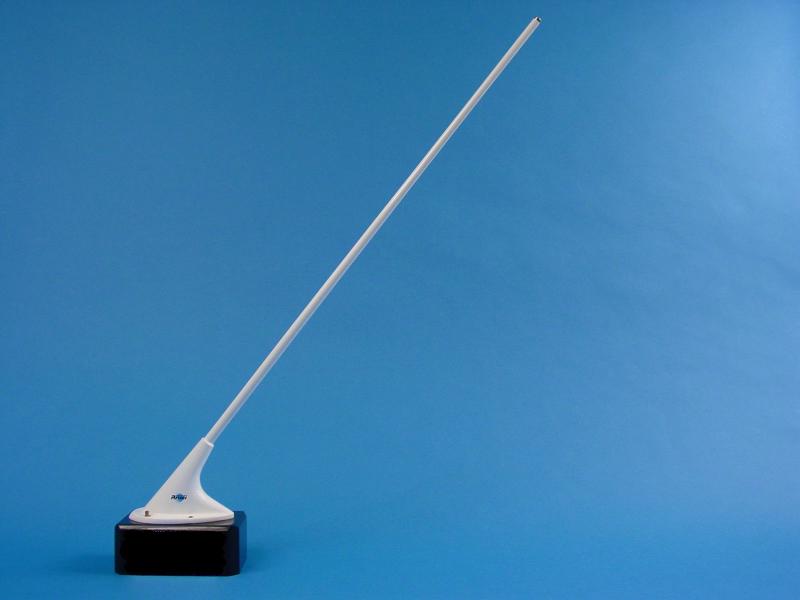

We also have available a prewired wiring harness for $195.00 which provides for quick, easy and reliable installation. We normally have the XCOM radios and wiring harnesses in stock and available for immediate shipping. For people needing a very good COM antenna for their aircraft, we offer the AV10 antenna for $99.00.

We use the XCOM radio and wiring harness in our Aerotrek aircraft.....
