ICOM A6 and A24


ICOM AVIATION RADIOS
ICOM aircraft radio, ICOM A6, ICOM A24
ICOM A14 and ICOM A14S

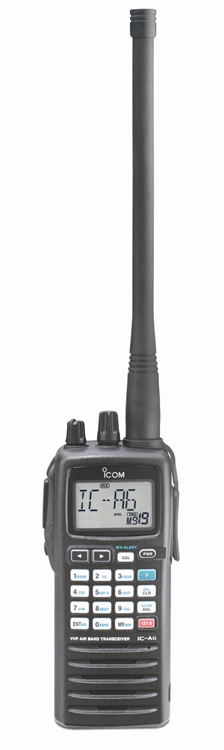

ICOM A6
(as shown on left - click for larger photo)
Includes GA headset adapter and with
1650 mAh NiMH battery & 110v charger... $245.00


ICOM A24
(as shown on right - click for larger photo)
The ICOM A24 is virtually identical to the ICOM A6,
except the A24 has the VOR-navigation feature.
Includes GA headset adapter and with
1650 mAh NiMH battery & 110v charger... $325.00

ICOM A6 and A24



  ICOM A14

ICOM A14
The latest aviation handheld radio from ICOM!
(as shown on left - click for larger photo)
with full keyboard and includes
2000 mAh Lithium-Ion battery & 110v charger... $195.00
(headset adapter not included)


ICOM A14S
The ICOM A14 is virtually identical to the ICOM A14
except the A14S uses a simple keyboard design
(as shown on right - click for larger photo)
with 2000 mAh Lithium-Ion battery & 110v charger... $225.00
(headset adapter not included)

ICOM A14



The pilot's favorite handheld radios are here!
 :
     When it comes to manufacturing handheld radios, ICOM is in a class above the rest. With over 30 years of experience in communications equipment, the ICOM name is known all over the world for its development of the most technologically advanced and rugged portable radios.



FEATURES OF THE ICOM A6/A24 . . .

Easy to use while flying
-- Simple one-handed operation is the most essential feature of the ICOM handheld radios. The well-labeled, large keypad provides user-friendly operation. The display is backlit, and so is the keypad. The light stays on until you turn it off – a very handy feature for flying at night.

“Flip-flop” channel recall -- The IC-A6/A24 stores the last 10 channels used. You can easily recall those channels by pushing the “flip-flop” recall buttons on the front panel. It is convenient for switching between several channels.

CDI mode display -- The IC-A24 has VOR navigation functions. The DVOR mode shows the radial to or from a VOR station and the CDI mode shows the course deviation to/from a VOR station. You can also input your intended radial to/from the VOR station and show the course deviation on the display. In the USA version, the duplex operation allows you to call a COM channel, while you are using VOR navigation.

External DC power jack -- An external DC power jack allows for operation with the BC-110AR 110v wall charger or with the optional CP-20 or CP-19R cigarette lighter cable. When the battery pack is installed, simultaneous charging during operation is also possible. In addition, an optional battery case, BP-208N, is available.

Water resistant construction -- The water resistant construction provides reliable operation in wet conditions. (Equivalent to IPX4 of the corresponding international standard IEC 60529 (2001).)

And more . . .
    *   200 memory channels (20 Ch × 10 banks) with 6 character names
    *   Dedicated 121.5MHz emergency key
    *   Side tone function allows you to hear your own voice via an external aviation headset.
    *   NOAA marine weather channels
    *   Tag scanning and memory bank scanning
    *   ANL (Auto Noise Limiter) for noise reduction
    *   Low battery alert

ICOM A6/A24 Owner's Manual... Icom-a6-a24-Manual.pdf


FEATURES OF THE ICOM A14 . . .

Introducing the all new IC-A14, a Lithium Ion (Li-ion) powered air band transceiver and weather report (WX) receiver. Offering plenty of the features that other Icom hand-held radios are known for, the A14 offers all of the Icom ruggedness and reliability that the brand is known around the world for. Icom's "V Speed Audio" cuts through cabin noise. The A14's 700 mW audio output, combined with a BTL amplifier, offer outstanding volume and clarity. The LCD screen with programmable channel names lets students quickly and visually ID who they're talking with. 200 Memory channels and 8 alphanumeric LCD characters per channel allow for plenty of customized settings. A low battery indication and beep alert are also standard features. more details . . .

HAND HELD RADIO/FULL KEYPAD (IC-A14 21)
INCLUDES LI-ION BATTERY AND CHARGER
700mW WITH BUILT IN BTL AMPLIFIER
5 WATTS OF TRANSMIT POWER
LI-ION BATTERY PACK 2000mAh
LOW BATTERY INDICATION & BEEP ALERT
200 MEMORY CHANNELS/10 MEMORY BANKS
SIDE TONE & ANL FUNCTIONS
BC-179 HOLDER TYPE BATTERY CHARGER MIL SPECIFIED TO MIL-810/C/D/E/F

700mW* loud audio

Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio that’ll cut through cabin or tarmac noise.
* Internal speaker only

Full keypad type
The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-A14 receives NAV and WX channels. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.

Compact, light weight and rugged body
The IC-A14/S series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions.

Large capacity Lithium-Ion battery pack
With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14/S series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.

200 channels with memory banks
A total of 200* memory channels can be named with an 8-character channel name for easy recognition. For fast and simple operation, these channels can be grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and memory banks are not available.


FEATURES OF THE ICOM A14S . . .

HANDHELD RADIO/SIMPLE KEYPAD (IC-A14S 01)
INCLUDES LI-ION BATTERY AND CHARGER
700mW WITH BUILT IN BTL AMPLIFIER
5 WATTS OF TRANSMIT POWER
LI-ION BATTERY PACK 2000mAh
LOW BATTERY INDICATION & BEEP ALERT
100 CONSECUTIVE MEMORIES
SIDE TONE & ANL FUNCTIONS
BC-179 HOLDER TYPE BATTERY CHARGER
MIL SPECIFIED TO MIL-810C/D/E/F

700mW* loud audio

Because air band radios are usually operated in high-noise environments, it is essential for the radio to provide loud and clear audio. The IC-A14/S series employs a BTL amplifier that doubles the audio output, offering loud and clear audio that’ll cut through cabin or tarmac noise.
* Internal speaker only

Simple keypad type
The IC-A14 full keypad type allows you to input the channel or frequency directly and has an exclusive button for the 121.5MHz emergency channel. The IC-A14 receives NAV and WX channels. The IC-A14S simple keypad type provides simpler operation with a minimum of buttons that is suitable for ground crews.

Compact, light weight and rugged body
The IC-A14/S series is compact (only 120mm tall) and light weight (approx. 350g including antenna and BP-232N). The water resistant construction, equivalent to IPX4, provides reliable operation in wet conditions.

Large capacity Lithium-Ion battery pack
With the 2000mAh large capacity Lithium-Ion battery pack, BP-232N, the IC-A14/S series provides stable output power and 18 hours long (approx.) operating time*. The BP-261, battery case takes 6 AA (LR6) alkaline cells for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90.

100 channels NO memory banks
A total of 100 memory channels can be named with an 8-character channel name for easy recognition. The IC-A14S has 100 memory channels and memory banks are not available.

BC-179 holder type battery charger
The battery charger, BC-179, securely holds and charges the radio, even in bumpy conditions. The cigarette lighter cable, CP-22, can be used with the BC-179.

Other outstanding features:
    5W typ. (PEP), 1.5W (CW) output power
    Side tone function allows you to hear your own voice via a third party aviation headset
    LCD backlight for night time operation
    ANL (Auto Noise Limiter) for noise reduction
    Low battery indication and beep alert
    Adjustable microphone gain setting
    BNC type antenna connector
