AVMAP GEOPILOT GPS MOUNTING IDEAS...

We suggest using the RAM-MOUNT rubber ball and socket system to mount the GeoPilot in your aircraft. We attach a RAM-MOUNT ball base on the back of the GPS, using some "permanent" poster mounting tape. We've found this provides a very strong and durable mount (and even though the tape is "permanent", it can be removed from the GPS by cutting through the foam with a razor blade to remove the RAM-MOUNT ball base and then the tape can be peeled off the back of the GPS and off the back of the RAM-MOUNT ball base). How we do this and a few ways of mounting are shown in the photos below.

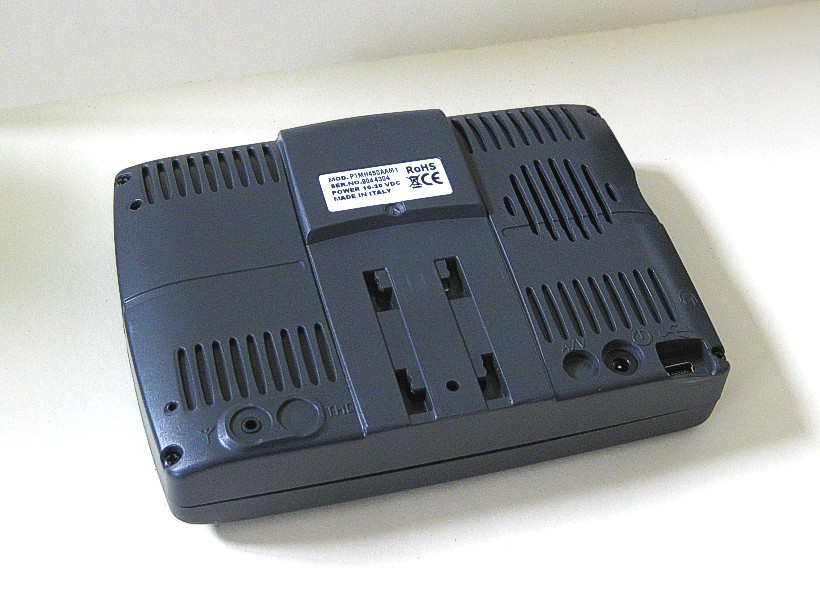

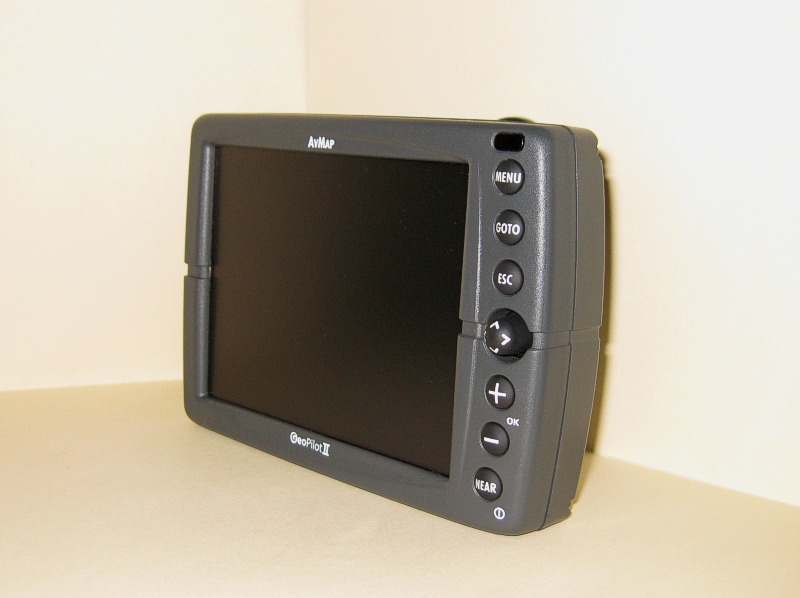

photos of the GeoPilot front and back...

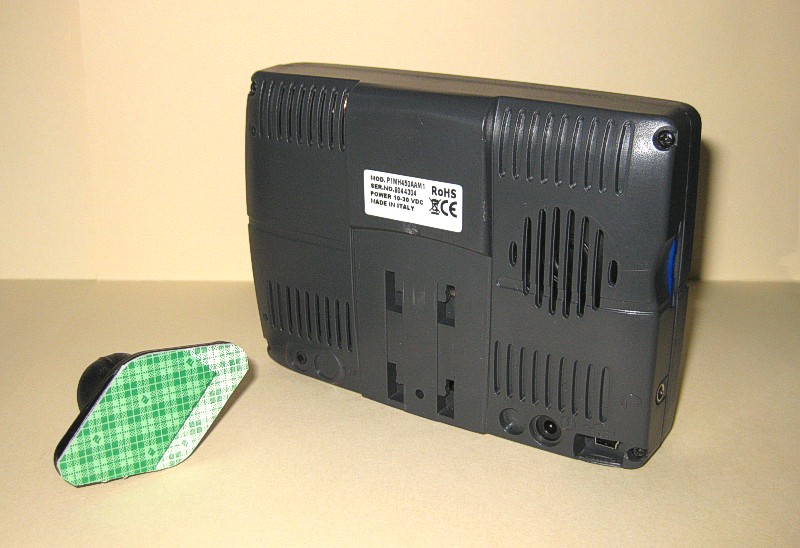

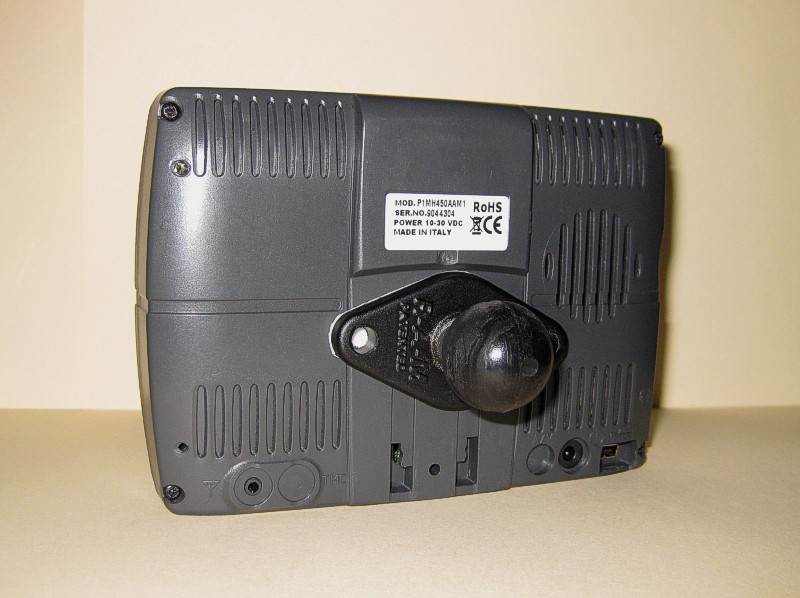

photos showing the RAM-MOUNT ball base as installed on the back of the GPS...

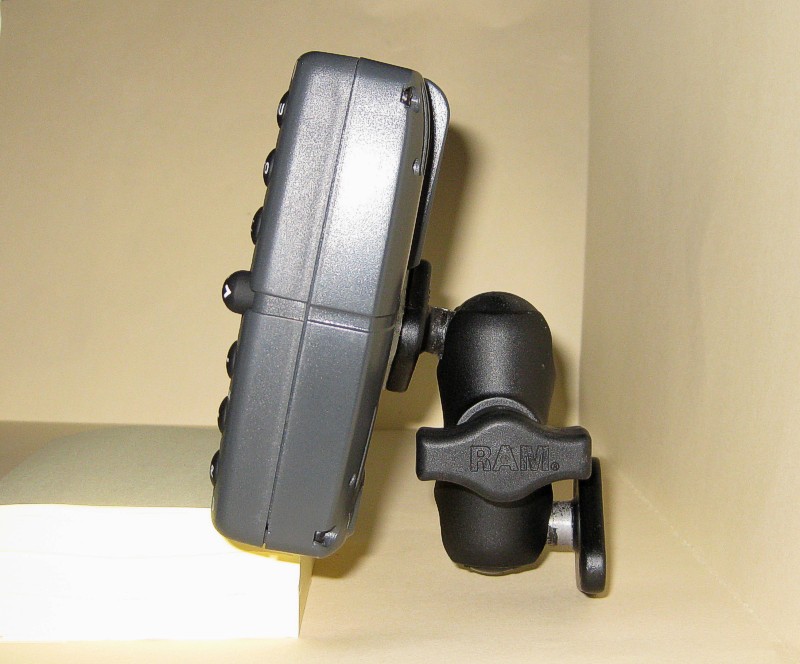

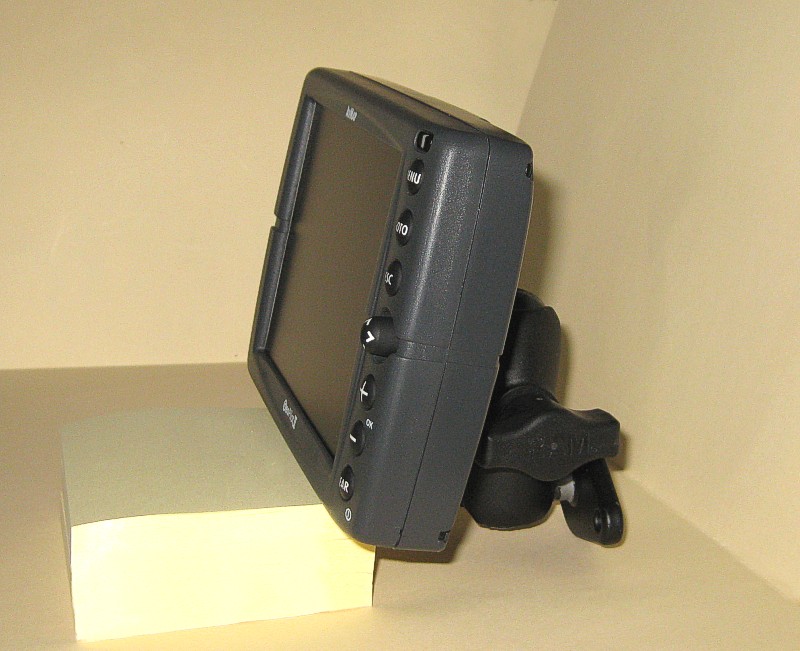

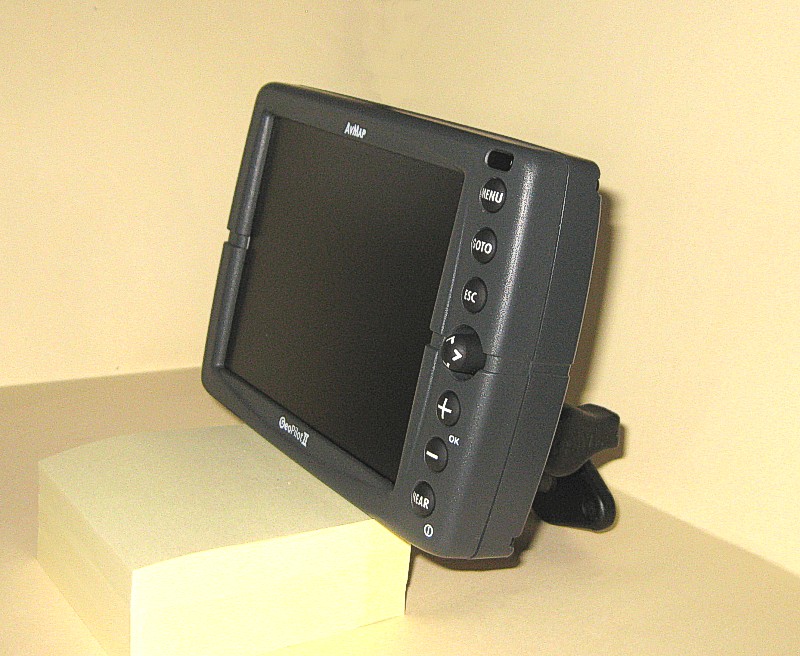

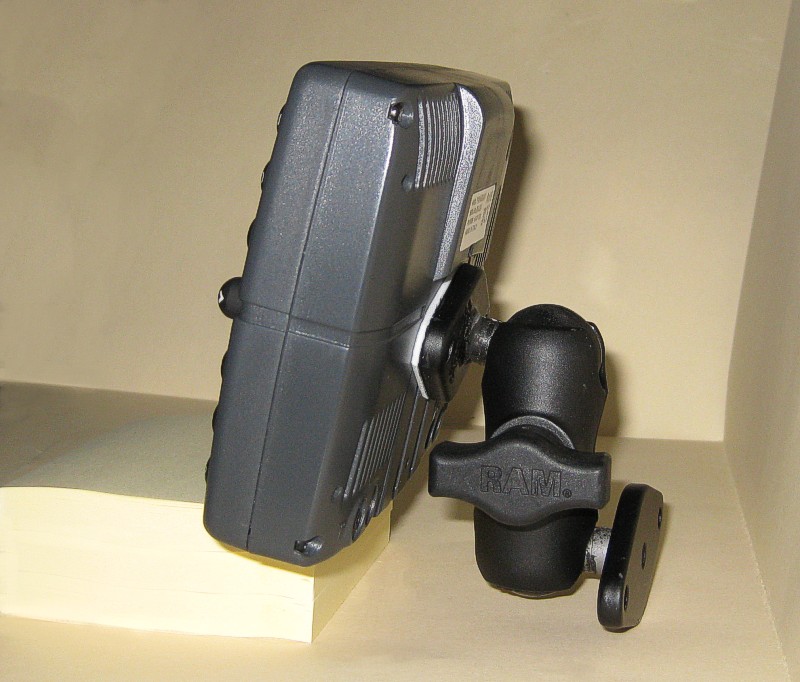

using with the RAM-MOUNT short post...

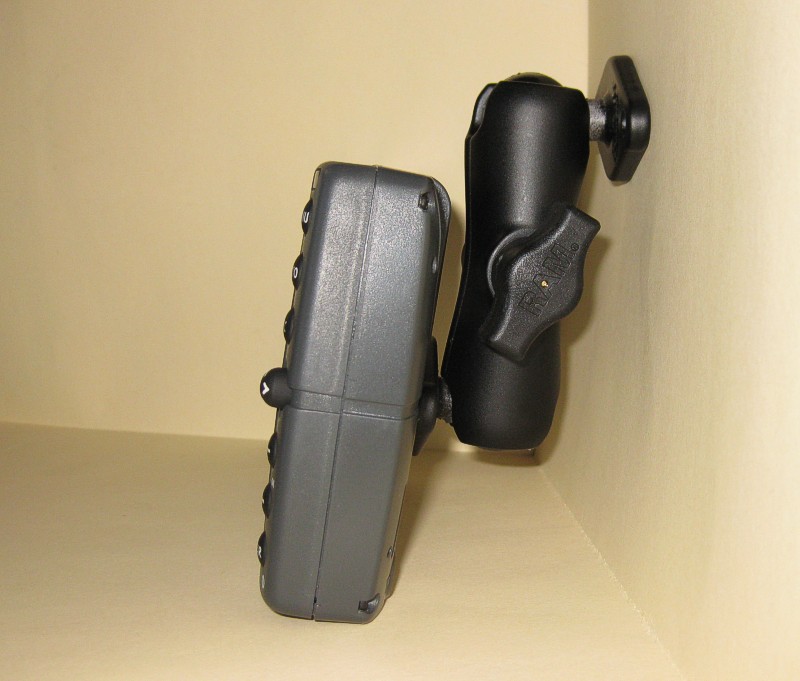

using with the RAM-MOUNT long post...

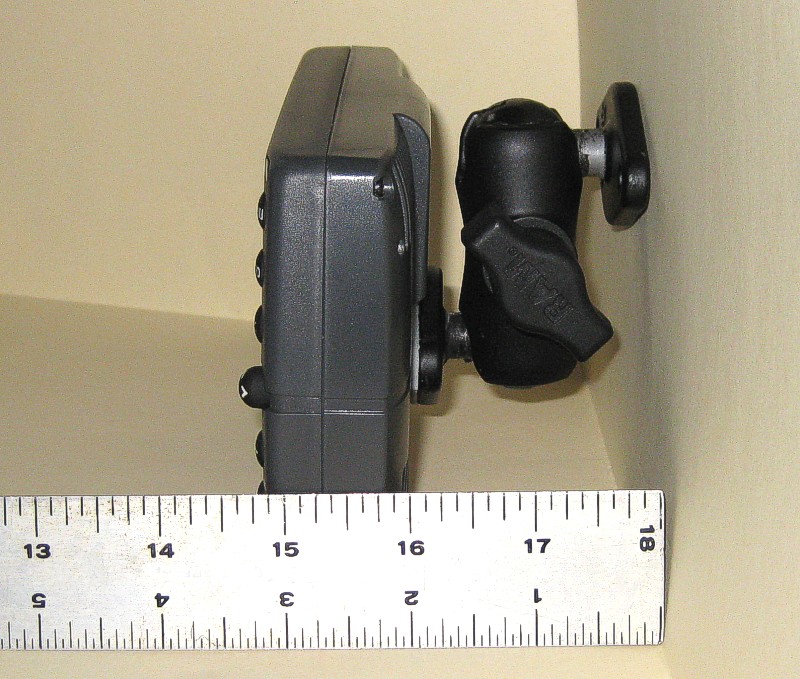

using with the RAM-MOUNT short post...

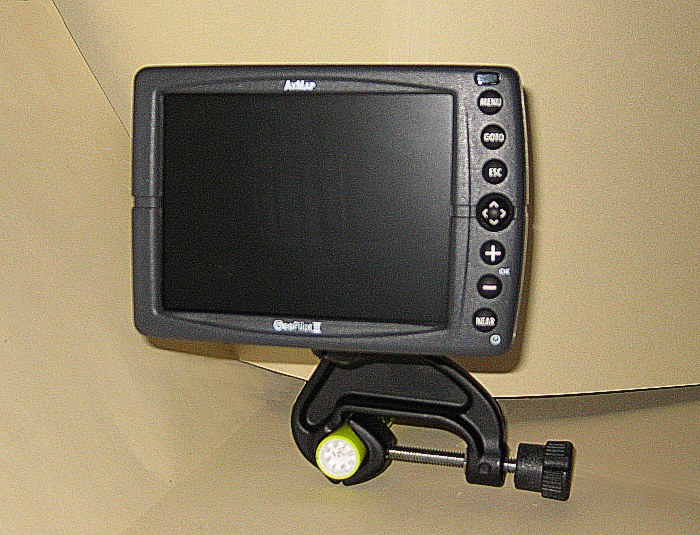

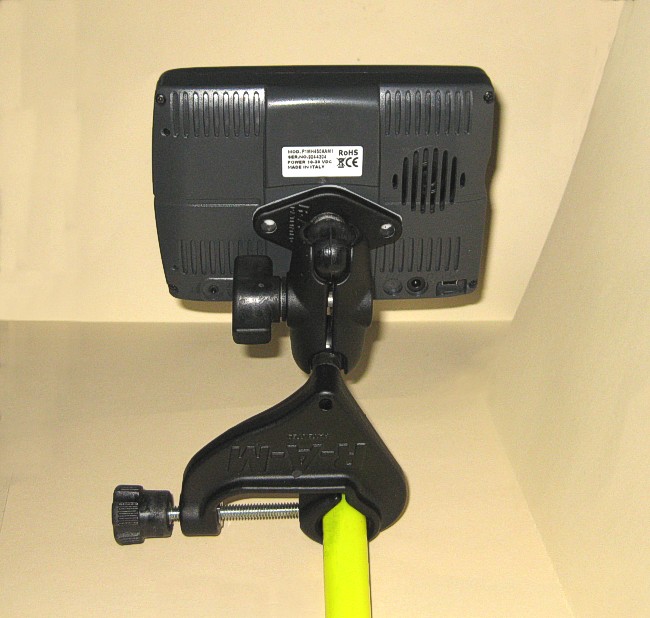

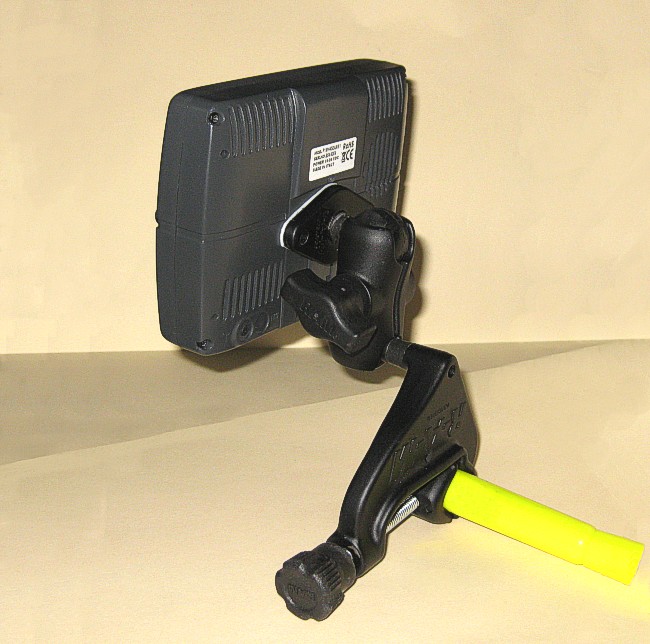

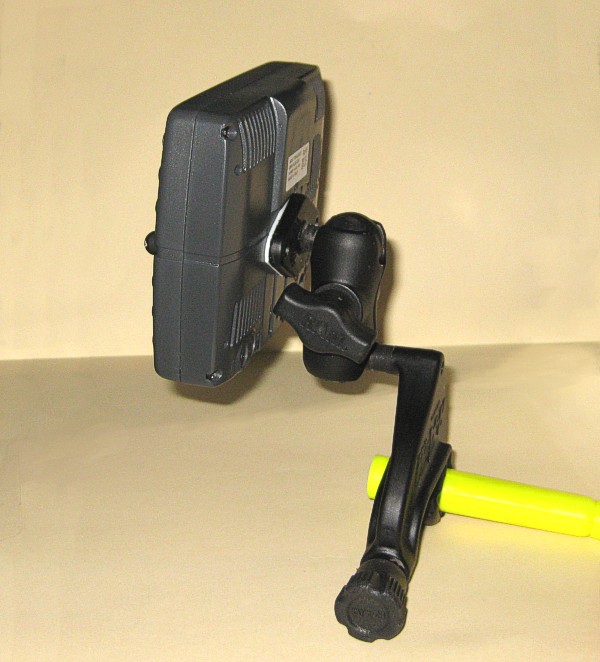

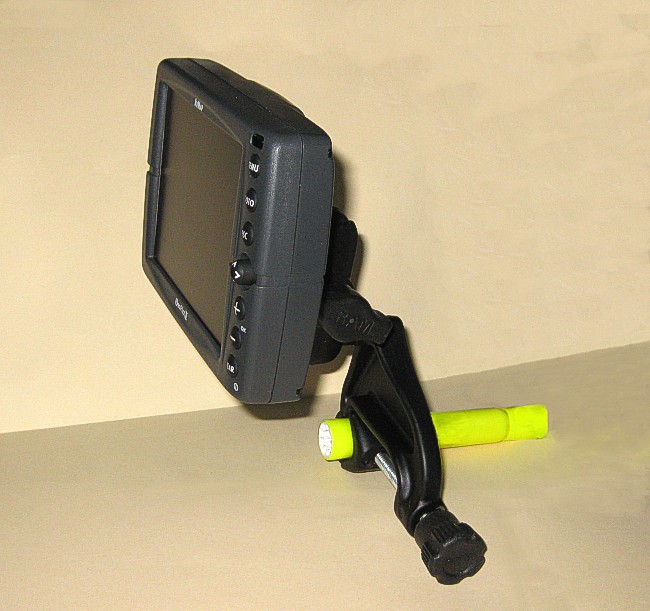

using RAM YOKE CLAMP MOUNT W/DIA BASE, Product Number: RAM-B-121-238U...

In the photos above, a yellow marker is used to show where the RAM-MOUNT clamps to the aircraft yoke tube. When using the RAM-MOUNT yoke mount, either the short or the long post can be used as needed for your aircraft and preferences.

pricing:
  installation kit with two ball bases and both short and long posts plus mounting tape... $25.00
  installation kit with yoke mount system plus mounting tape... $45.00


        for more information or to place an order, please email or call . . .
