AvMap EKP-IV Aviation GPS
exceptionally large, high-resolution color display!
|
|
|
|
AvMap EKP-IV
Largest Color Screen on a Portable Aviation GPS
"The best and brightest in its class!"
the AvMap is now standard with "terrain depiction"!
The AvMap EKP-IV brings situational awareness to the next level in a portable moving map GPS. Featuring a new, more compact unit profile with an even LARGER and more brilliant color, sunlight-viewable LCD display. AvMap EKP-IV... redefining portable GPS moving map systems.
AvMap EKP-IV complete package . . .
list price...$1499.00
The AvMap EKP-IV package includes: heavy-duty plastic carrying case, removeable kneeboard/strap, cigarette-lighter type power cable, remote antenna with 5-meter cable, and user manual
|
|
STILL the largest portable GPS screen (7" diagonal)
Compact, sleek design (4.75" W x 7"L x 1.5"H). Internal 12-channel GPS. Operates on aircraft 10 to 35-volt power supply with internal batteries for emergency use (up to 1.5 hours). Jeppesen NavData for the U.S., Canada, Central & South America. Full flight planning capability (10 flight plans of up to 100 legs each). Full or split HSI screens with data fields. Vertical navigation routing. Calculator functions: fuel, winds, timers, trip computer. Aircraft checklists. Full simulator functions. Integration with other onboard navigation systems (such as autopilot). External antenna. Kneeboard design with R-A-M and fixed mounting options. The AvMap EKP-IV GPS utilizes a 128 mb Compact Flash for data storage so to have full high-detail continental coverage-integrating roads, regional chart, plus Jeppesen aviation data (for Europe or America depending on the version).
|
VIEW NAV DATA IN EITHER
VERTICAL OR HORIZONTAL MODE!
By strategically positioning menu keys along the sides of the slimmed-down case the unit can operate in Portrait or Landscape mode.
|
|
|
|
EKP-IV SPECIFICATIONS
Processor: Samsung Arm9 226 MHz
Dimensions: 4.75"W x 7"L x 1.5"D
Weight: 1.2 lbs.
Screen Display: 7" diagonal
Screen Resolution: 800 x 480 pixels
Screen Brightness: 400 nits
Data Storage: 128 mb Compact Flash memory card
Mapping/NavData:
Aeronautical: Jeppesen
Land: TeleAtlas
Marine: C-MAP NT+
Power:
Aircraft: 10 to 35-volt supply
Batteries: 6 AA (optional: NiMH rechargeable)
Interface: Serial Port and USB
External Antenna: Active (5v DC), 3" diameter with 5 meter cable
Warranty: One year
additional details, specifications, and panel photos
AvMap EKP-IV display screens...
AvMap EKP-IV key functions info...
A) Data Fields - Monitors data related to the current flight. User can choose several screen options and preset data fields based on mode of flight. Options include: interim and final destination; waypoint/airport info; distance; ETE; ETA; bearing; cross-track error; GPS info; as well as vertical navigation, fuel consumption, A-B function and timers.
B) Power - Brightness & contrast control, power-on/off unit.
C) Page - Displays 'Nearest' functions to include: Airports; VORs; NDBs; Intersections; ARTCC and FSS Frequencies; Points of Information (POIs).
D) GoTo - Allows direct 'GoTo' to any of the following: Cursor location, Airports, VORs, NDBs, Intersections and User Waypoints.
E) Cursor Control - Provides full range of panning capability, as well as auto info on map and NavData.
F) Menu - Easy access to all navigation and mapping functions.
G) Cycle - Function allows user to scroll between three pre-set data screens.

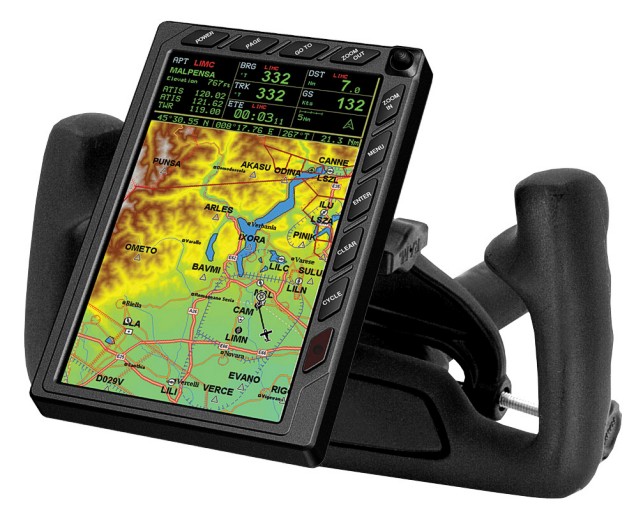

Use the AvMap EKP-IV on your
knee, or mount in aircraft.
|
|
|
|
|
|
|
GPS Size Comparisons...
The AvMap EKP-IV has a very large (7" diagonal measurement) display. The AvMap EKP-IV screen is 78% larger in area than the next-largest-screen-size Lowrance AirMap 2000c and the AvMap is very much larger than the Garmin color GPS units. The AvMap EKP-IV has this very large screen while still having a case with overall dimensions that are still very reasonable. The AvMap EKP-IV case is actually narrower and thinner than the Lowrance AirMap 2000c, and is just .75" taller, while still providing a 78% larger screen area. The AvMap EKP-IV also has much higher screen resolution than the AirMap 2000c. The EKP-IV screen is 800 x 480 pixels while the AirMap 2000c screen is 320 x 240 pixels -- which means the AvMap EKP-IV screen has five-times more pixels and this provides a much sharper, clearer display.

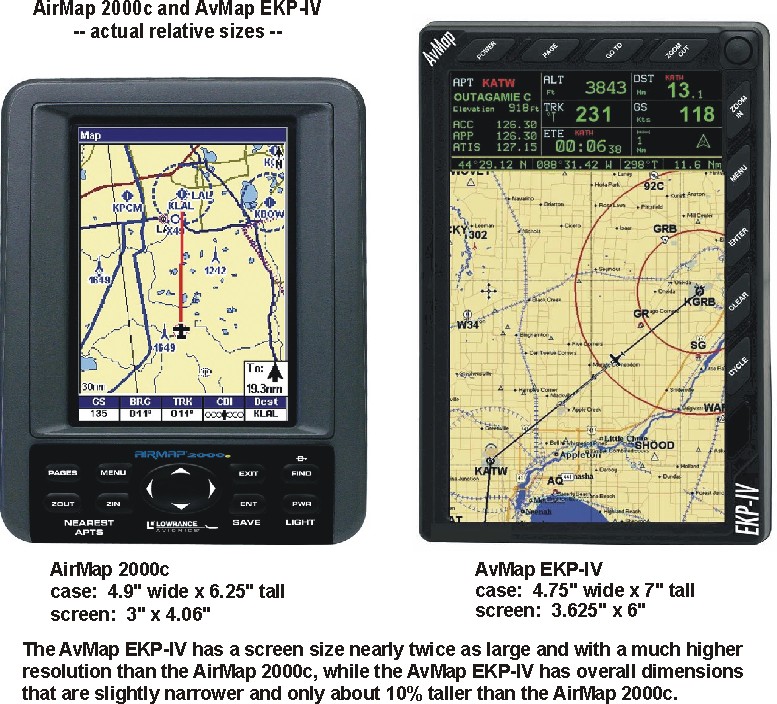

 AirMap 2000c and AvMap size comparison
|
