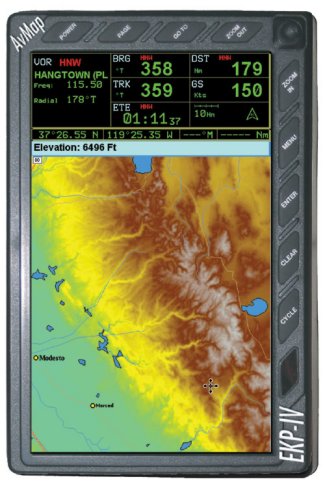

  AvMap EKP-IV - click for larger image

AvMap EKP-IV

the AvMap is standard with "terrain depiction"
  and now is available with satellite weather!


The AvMap EKP-IV brings situational awareness to the next level in a portable moving map GPS. Featuring a compact unit profile with a LARGE and more brilliant color, sunlight-viewable LCD display. AvMap EKP-IV... redefining portable GPS moving map systems.

AvMap EKP-IV complete package . . .
      list price...$1399.00   (click for our special discount price)

        with free shipping!

special!   $200 MAIL-IN REBATE
    EXTENDED through DECEMBER 31, 2011

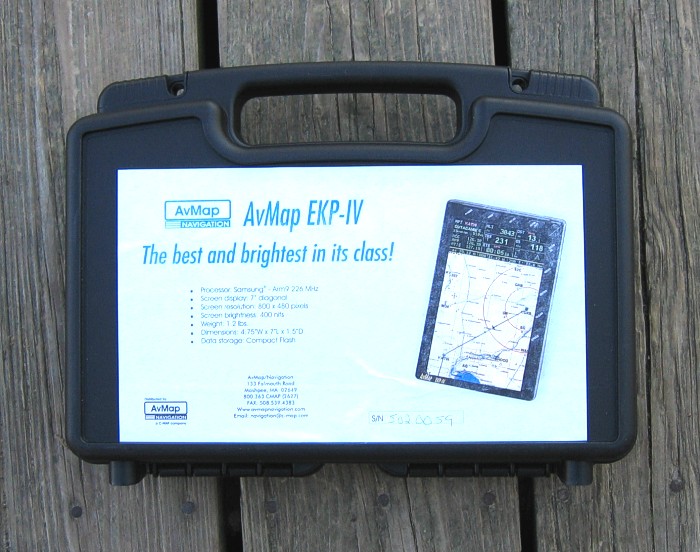

The AvMap EKP-IV package includes: heavy-duty plastic carrying case, removable kneeboard/strap, cigarette-lighter type power cable, remote antenna with 5-meter cable, and user manual


for a more compact and lower-cost GPS, please see the AvMap GeoPilot-II GPS systems on our AvMap web page

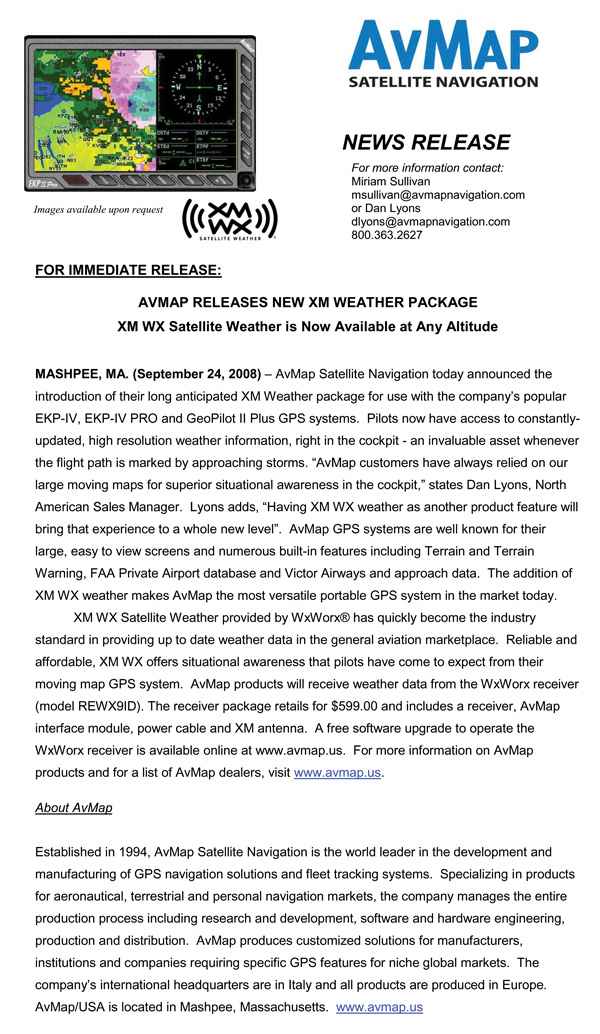

Now you can have satellite weather on a large and sharp GPS display!
XM Satellite weather option... $595.00
contact us for more information!

Compact, sleek design (4.75" W x 7"L x 1.5"H). Internal 12-channel GPS. Operates on aircraft 10 to 35-volt power supply. Jeppesen NavData for the U.S., Canada, Central & South America. Full flight planning capability (10 flight plans of up to 100 legs each). Full or split HSI screens with data fields. Vertical navigation routing. Calculator functions: fuel, winds, timers, trip computer. Aircraft checklists. Full simulator functions. External antenna. Kneeboard design with R-A-M and fixed mounting options.


        click for larger image

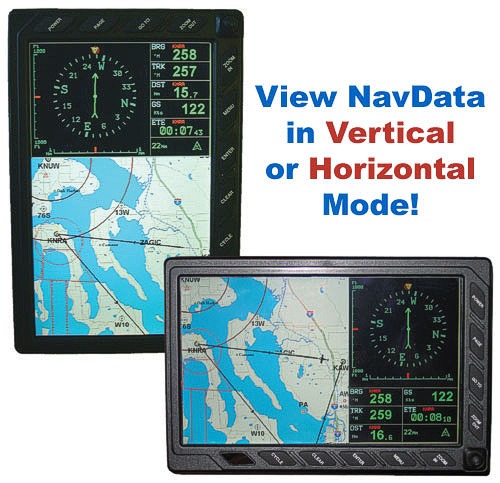

VIEW NAV DATA IN EITHER
VERTICAL OR HORIZONTAL MODE!

By strategically positioning menu keys along the sides of the slimmed-down case the unit can operate in Portrait or Landscape mode.

  click for larger image



EKP-IV SPECIFICATIONS

  • Processor: Samsung Arm9 226 MHz
  • Dimensions: 4.75"W x 7"L x 1.5"D
  • Weight: 1.2 lbs.
  • Screen Display: 7" diagonal
  • Screen Resolution: 800 x 480 pixels
  • Screen Brightness: 400 nits
  • Data Storage: 512 mb Compact Flash memory card
  • Mapping/NavData:
            Aeronautical: Jeppesen
            Land: TeleAtlas
            Marine: C-MAP NT+
  • Power:
            Aircraft: 10 to 35-volt supply
            Batteries: 6 AA (optional: NiMH rechargeable)
  • Interface: Serial Port and USB
  • External Antenna: Active (5v DC), 3" diameter with 5 meter cable
  • Warranty: One year
  • additional details and specifications

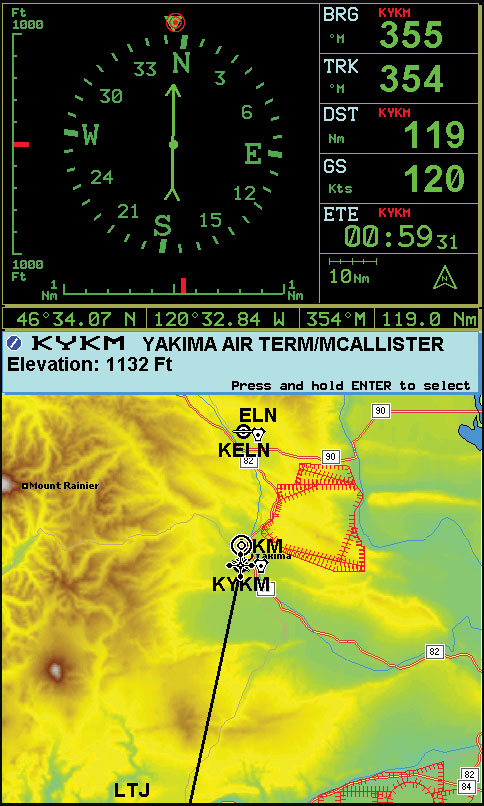

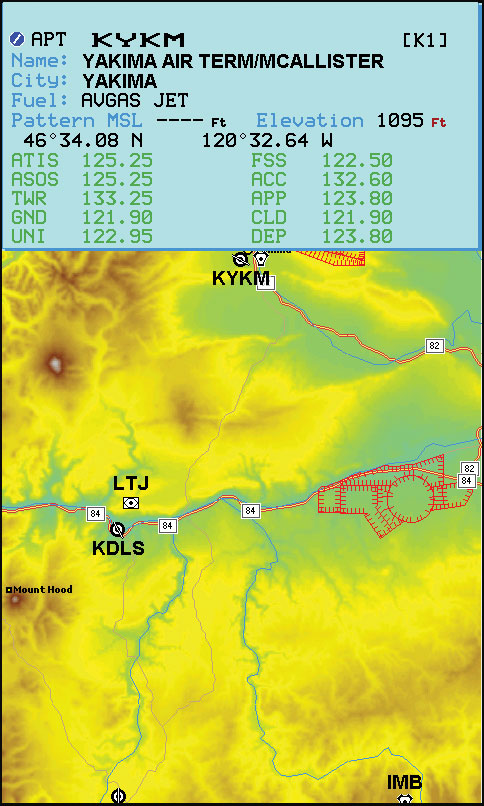

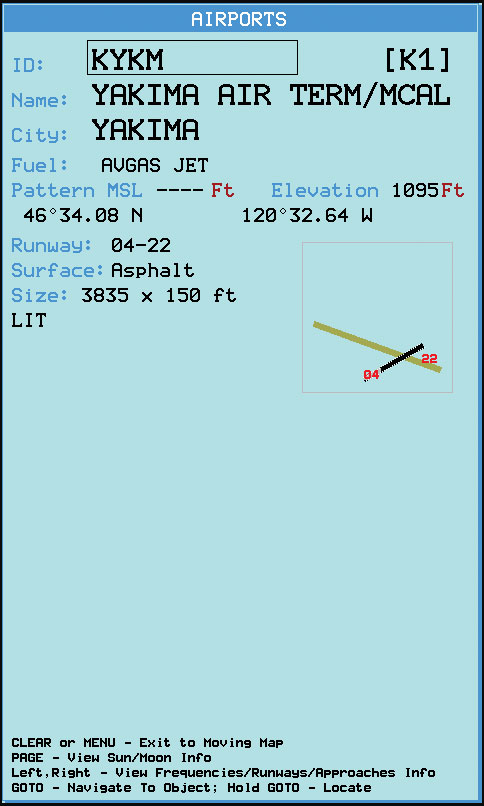

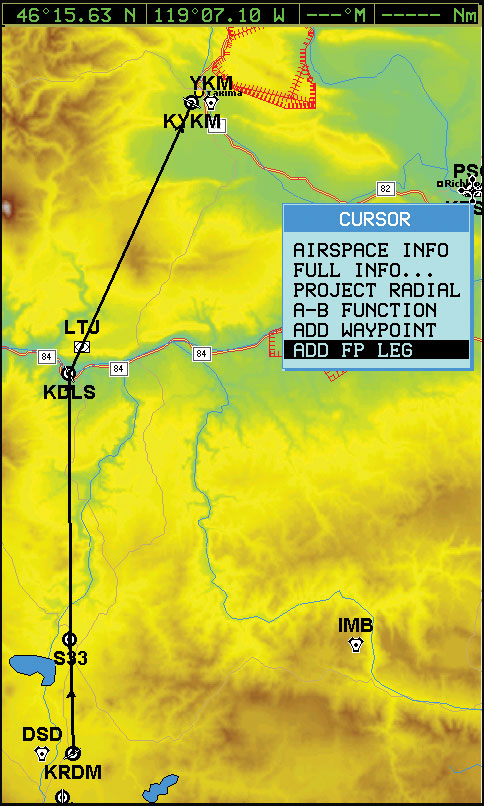

    AvMap EKP-IV display screens...

    click for larger image     click for larger image     click for larger image     click for larger image     click for larger image     click for larger image

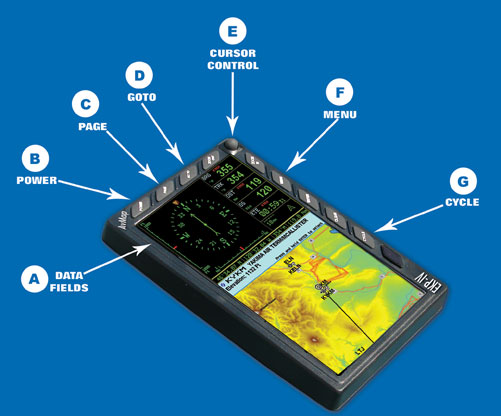

    AvMap EKP-IV key functions info...

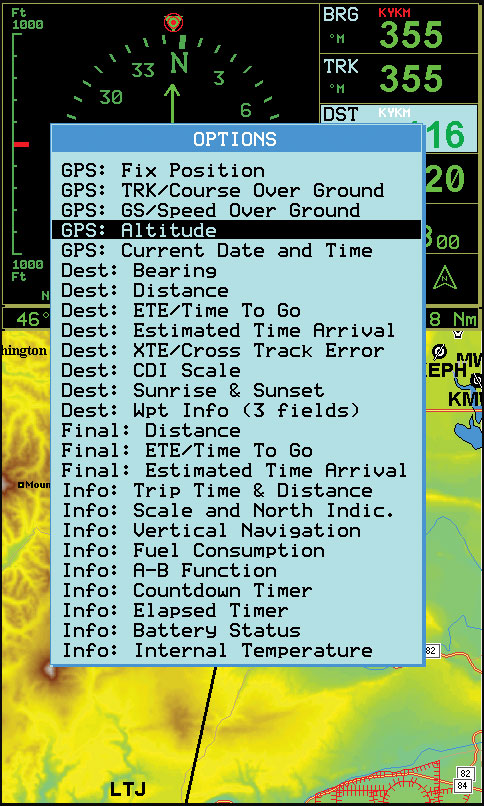

    A) Data Fields - Monitors data related to the current flight. User can choose several screen options and preset data fields based on mode of flight. Options include: interim and final destination; waypoint/airport info; distance; ETE; ETA; bearing; cross-track error; GPS info; as well as vertical navigation, fuel consumption, A-B function and timers.
    B) Power - Brightness & contrast control, power-on/off unit.

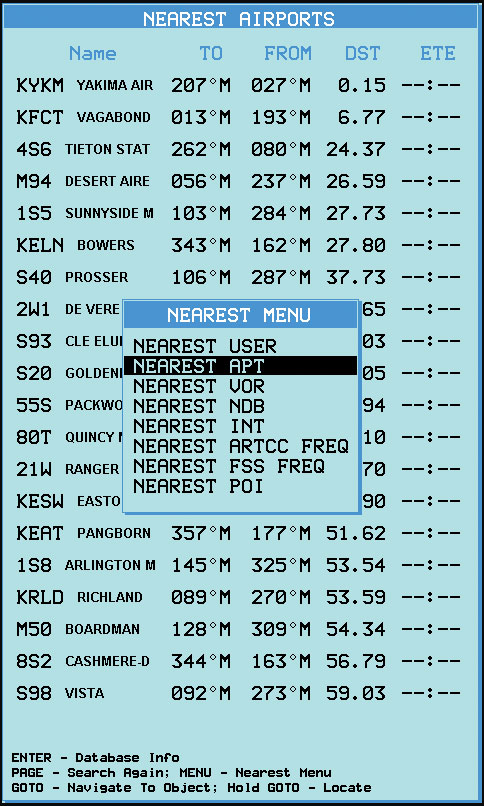

    C) Page - Displays 'Nearest' functions to include: Airports; VORs; NDBs; Intersections; ARTCC and FSS Frequencies; Points of Information (POIs).
    D) GoTo - Allows direct 'GoTo' to any of the following: Cursor location, Airports, VORs, NDBs, Intersections and User Waypoints.
    E) Cursor Control - Provides full range of panning capability, as well as auto info on map and NavData.
    F) Menu - Easy access to all navigation and mapping functions.
    G) Cycle - Function allows user to scroll between three pre-set data screens.

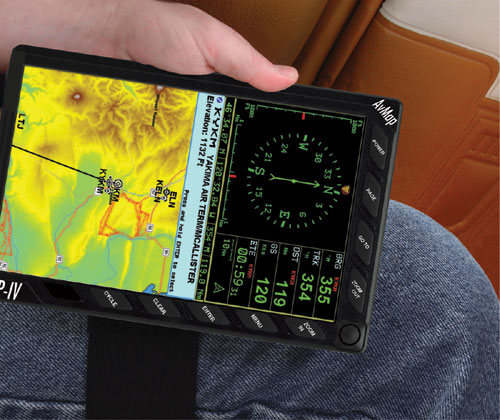

    Use the AvMap EKP-IV on your
    knee, or mount in aircraft.




    click for larger image

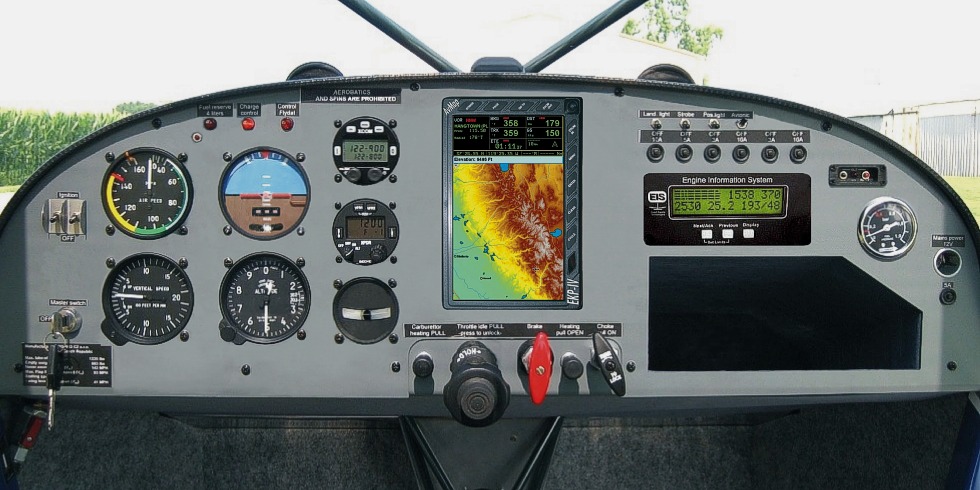

    We install the AvMap EKP-IV GPS on the the instrument panel
    of almost every Aerotrek aircraft that we sell in the U.S. --
    see our Aerotrek web site at www.fly-aerotrek.com
